Sino linear actuators
10 Years
| Ask Lasest Price | |
| Model Number : | heavy duty linear actuator |
| Certification : | CE |
| Price : | usd$145 |
| Payment Terms : | T/T, Paypal |
| Supply Ability : | 3000pcs per month |
| Delivery Time : | 7-10 work days |
| Brand Name : | OEM |

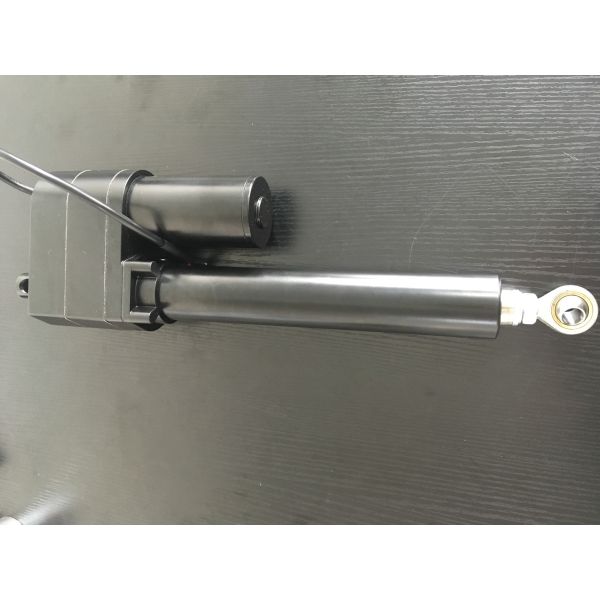

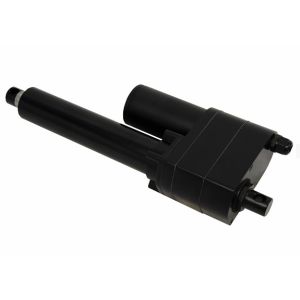

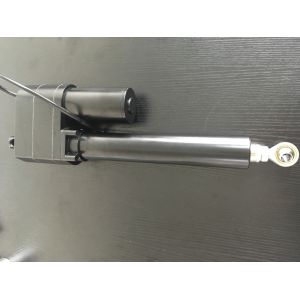

Specification of linear actuator
| Model | Picture | Application |
| Heavy duty linear actuator |  | Sweeper car |
| Lawn mover | ||
| Voltage:12V/24V/36V | Snow plough | |
| Max load: 7000N | AGV | |
| Max speed: 35mm/s | LED Car | |
| Duty cycle:25% | Robotic vehicles | |
| Limit switch:Inner | Forklift | |
| IP grade: IP65 | braking system | |
| Retracted length: S+250mm | Harvesting machine | |
| Feedback: hall sensor or pot | Sprayer | |
| Stroke: Customized | Scissor lifter | |
| Inner tube: stainless steel | Others… |
Datails info of linear actuator
| Type | Electric linear actuator |
| Motor type | Brush DC motor |
| Cable | Bare wire |
| Voltage | 12 or 24VDC |
| Screw type | ACME |
| Noise level | ≤75dB |
| Limit switches | Integrated non adjustable |
| Stroke tolerance | ±3mm |
| Duty cycle | 25% |
| Production class | IP65 |
| Feedback | Hall sensor/pot |
| Operating and storage temperature | -40℃~+65℃ |
| Manufacturing quality standards | ISO9001:2015 |
| CE Label | Yes |
Load & Speed of Linear Actuator
| Product mode | Max load(N) | No-load speed (mm/s) | Full-load speed (mm/s) | Full-load current (A) -12v linear actuator |
Heavy duty linear actuator | 2000 | 35 | 28.5 | 17 |
| 3000 | 22 | 18 | 17 | |
| 4000 | 17 | 14 | 17 | |
| 5000 | 11 | 9.5 | 17 | |
| 7000 | 5.5 | 4 | 18 |
| Product mode | Max load(N) | No-load speed (mm/s) | Full-load speed (mm/s) | Full-load current (A) -24v linear actuator |
| Heavy duty linear actuator | 2000 | 35 | 28.5 | 8 |
| 3000 | 22 | 18 | 8 | |
| 4000 | 17 | 14 | 9 | |
| 5000 | 11 | 9.5 | 9 | |
| 7000 | 5.5 | 4 | 9 |
Potentiometer Wirings & Motor wiring
More linear actuators for you choose:
| Model | Picture | Application |
| Mini linear actuator |  | Sweeper car |
| Lawn mover | ||
| Voltage:12V/24V/36V/48V | Snow plough | |
| Max load 1200N | Dog treadmill | |
| Max speed:100mm/s | LED Car | |
| Duty cycle:25% | Arrow board trail | |
| Limit switch:Inner | Forklift | |
| IP grade:IP65 | braking system | |
| Noise level:60db-65db | Others… | |
| Solar tracker linear actuator |  | |
| Voltage:24V | Solar tracker | |
| Max load 12000N | ||
| Max speed:3.3mm/s | ||
| Duty cycle:10% | ||
| Limit switch:Inner | ||
| IP grade:IP66 | ||
| Micro linear actuator |  | |
| Voltage:12V/24V/36V/48V | Application: | |
| Max load 2000N | Sweeper car, | |
| Max speed:15mm/s | Lawn mover, | |
| Duty cycle:25% | Forklift, | |
| Limit switch:Inner | Dog treadmill, | |
| IP grade:IP66 | Furniture, | |
| Noise level:45db | Others... |
Our solutions will save you time and money through innovated design
of electric motors and power transmission products that we supply.
Whether you are a company’s Buyer, Out-Sourcing Manager, Engineer,
Technician Production Manager or the Marketing/Product Manager, our
goal is simple….to provide the best value linear actuators to meet
your application needs.
Application of linear actuator:
